TeslaMirror is an app that will help your Android app mirroring to Tesla vehicle! Also, it can support app screencast to a normal desktop browser (Safari or Chrome).
For Tesla vehicle built-in browser
1 Make sure the car is PARKED.
2 The Tesla vehicle network must be connected to the Android device Personal Hotspot first. Tesla MCU2 hardware is needed. MCU2 is available on the Tesla Model 3, Model Y, Model X (late than March 2018), Model S (late than March 2018), or the Tesla vehicles that are upgraded to MCU2 from MCU1.
5GHz Personal Hotspot Wi-Fi network is preferred. Wi-Fi 6 AP is not supported by Tesla vehicle.
Hardware check list: Android device with Wi-Fi hotspot support, and Tesla vehicle with MCU2.

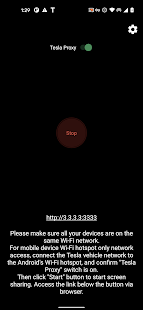

3 Start the TeslaMirror app. Confirm "Tesla Proxy" switch is on in the TeslaMirror app
4 Click the "Start" button to start Screen Broadcast in the TeslaMirror app
5 Access the link http://3.3.3.3:3333 via Tesla vehicle built-in browser (Please note 3.3.3.3 is not a real public IP. For this app, the 3.3.3.3 is just a virtual IP that is accessible only on the Android Wi-Fi hotspot.)
6 Enjoy the app streaming
7 Pinch the Tesla vehicle built-in browser screen to zoom in/out the picture
8 There is no audio support for the moment. Only the app screen will be mirrored to the browser. You can use the Bluetooth audio link to Tesla vehicle play the audio of the Android device simultaneously during the app mirroring.
For normal desktop browser (Safari or Chrome)
1 Make sure all your devices are on the same Wi-Fi network.
2 Start the TeslaMirror app.
3 Click the "Start" button to start Screen Broadcast in the TeslaMirror app
4 Access the link below the "Stop" button via normal desktop browser (Safari or Chrome)
5 Enjoy the app streaming in the browser
Key Features
1 No extra internet traffic for the screencast, the app mirroring traffic is only locally on Android device Personal Hotspot. However, please note that during the screenshot, the Tesla vehicle will use the hotspot traffic for its internet access when the hotspot is connected
2 No extra hardware needed; it is a totally software app mirroring solution.
3 Private, the screencast is only available to the devices connected to the Android Personal Hotspot Wi-Fi network, not available to the public internet.
4 Fast network, it is only on the mobile hotspot network. No need to be routed to the public internet
5 For Android device, it only needs to support Wi-Fi hotspot function. There is no need for Android device to have cellular support and SIM card. The Android device can connect to another mobile hotspot or iPhone hotspot, then share the network to Tesla via Wi-Fi hotspot.
FAQ
1 There is no audio support for the moment. Only the app screen will be mirrored to the browser. You can use the Bluetooth audio link to play the audio of the Android device simultaneously during the app mirroring.
Privacy/Security notice: This app does not collect any statistics, personal information, or analytics from our users.
Disclaimer: This software and documentation do not come from nor is endorsed by Tesla Inc. Use this app at your own risk. The author does not guarantee its proper functioning. Some features require certain vehicle options to work (e.g. MCU2 hardware needed). This app attempts to use the same interface used by the official Tesla apps. However, you are responsible for any changes to your car caused by using this app. The use of this app needs the vehicle's built-in browser. And we are not liable for any damages to you, your car, or any other object in conjunction with the use of this app.
Warning and Legal Disclaimer: DO NOT IGNORE THE FOLLOWING - This service should only be used when the car is PARKED (0mph/0kph)! The use of this program may be restricted based on your local jurisdiction regarding the built-in web browser in your vehicle.
Tesla for Android is only available on Google Play Store now. For official version, please only get it from Google Play Store.
|
